ECHO

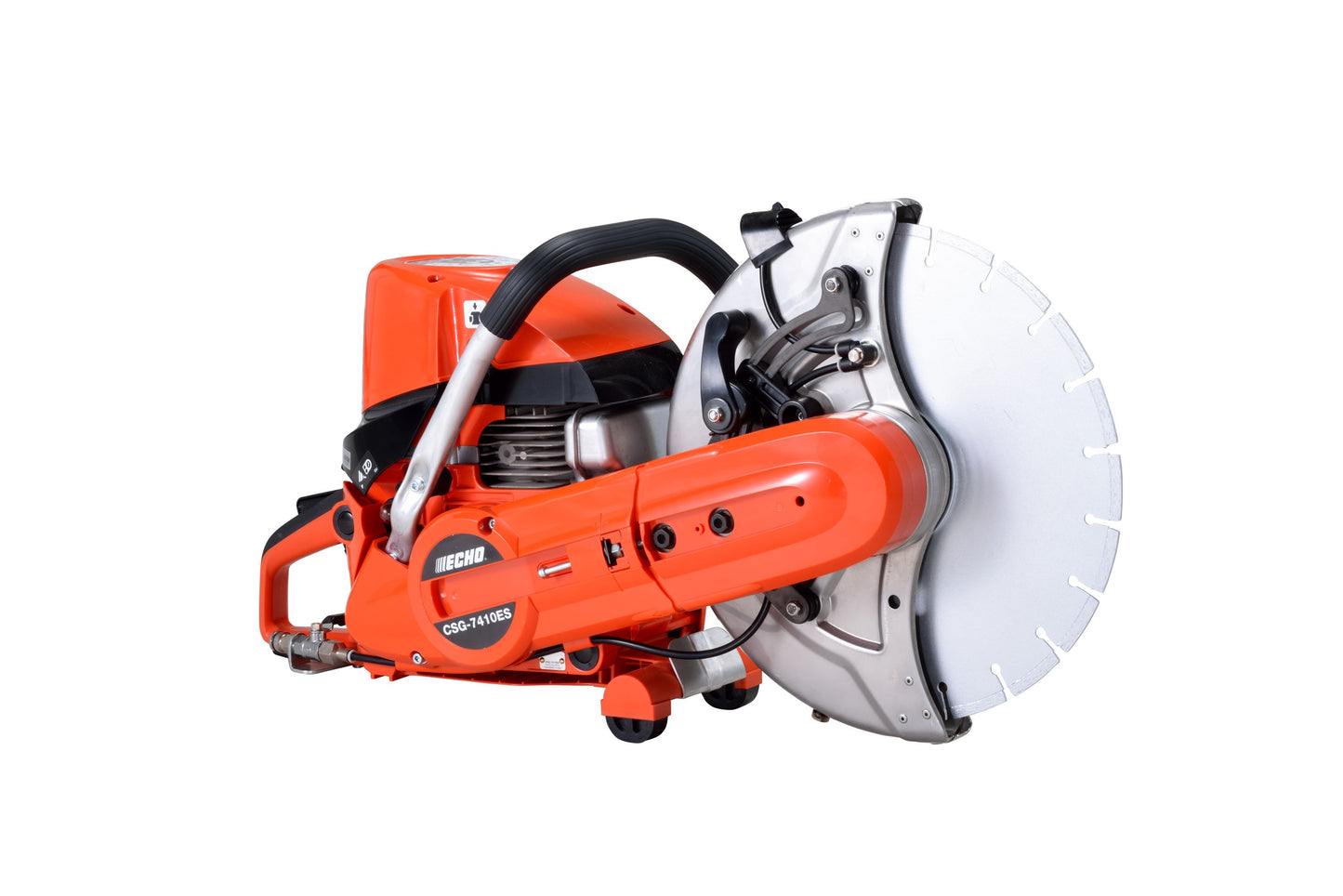

CSG-7410ES 12" Cut-off Saw

CSG-7410ES 12" Cut-off Saw

Regular price €999.00
Regular price Sale price €999.00
Sale Sold out
Tax included.
Find a dealer

The ECHO CSG-7410ES consaw has the highest cutting torque in its class to achieve exceptional performance and tackle tough jobs.

With a full complement of professional features, one of the best air cleaner systems in the industry, you really can depend on the CSG-7410. The high-power 73.5cc 2-stroke commercial-grade engine makes concrete cutting a breeze.

New 73.5cc two-stroke engine chrome cylinder and patented KaniboronTM piston plating provides friction reduction as well as superior wear and heat resistance. The two-ring piston offers a gas-tight seal with the cylinder, this is essential in high compression engines and ensures maximum power. Magnesium crankcase for lightweight and high strength.
Brass water valve.

The brass water valve controls the flow of water to the cutting wheel. Couple this with the industry-leading heavy-duty 4-stage air filter and your engine has the best protection from dust and debris on the market.

The CSG-7410ES cut-off saw has the highest cutting torque in its class due to its 2.6:1 drive ratio. The drive ratio is the ratio of the wheel pulley diameter to the drive pulley diameter. The higher the ratio the more torque is developed at the wheel. This means it's easier to cut thick masonry blocks or dense concrete and less likely that the unit will get bogged down in the cut.

The unit can be easily modified to an outboard cutting position (for those close up cuts to work areas) without the need for specialist tools.

Another outstanding feature is the starting action, minimal effort will be required to get this consaw beast into action.

Specification

  • 73.5cm Engine displacement
  • 3.2 kW Output
  • 4.4 ps Output
  • 10.3kg Dry Weight
  • 0.700 Litres Fuel tank capacity
  • 2.1 L/h Fuel Consumption At Maximum Engine Power
  • CDI Ignition System
  • ES-Start Decomp Start Assist System
  • 300 mm/12" Applicable Blade Diameter
  • 100mm/4" maximum cutting depth
  • 16mm/20mm/25mm arbours as standard
  • 754g/kW CO2

Features

Certified for CE
